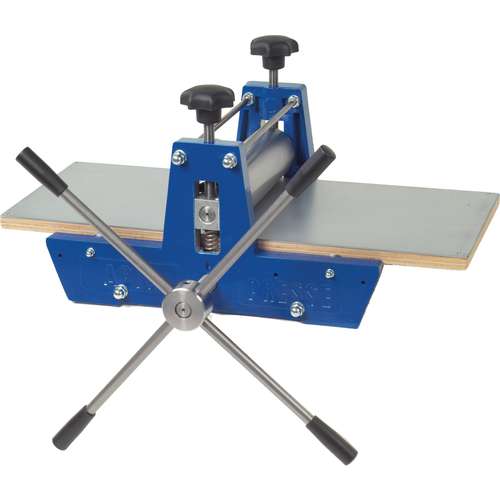

ABIG | Printing Press — 300 mm x 700 mm

The ABIG Printing Press 300 mm is a roller printing press for gravure such as linocut, woodcuts, etchings, etc. It is ideally suited for sizes up to A4 (conditionally to A3)

A handwheel with 4 bars directly drives the lower roller. With the 2 star handles, the roller pressure is adjusted as evenly as possible on the upper roller. The printing block is laid on the multiplex board which is reinforced with steel plate, making it pressure stable, and friction moves the plate between the rollers. By using a preset, consistent prints can be produced.

The printing table moves on both sides over slide guides made of technically high-quality, specially friction-minimising plastic webs.

Technical data for this ABIG Printing Press 300 mm:

• roller printing press
• upper and lower rollers, diameter 80 mm
• width 30 cm, printing table length 70 cm
• direct drive on bottom roller with 4-bar handwheel
• adjustable pressure setting directly on upper roller up to a maximum of approx. 1,000 kg.
• passage upper / lower roller 27 mm but can be increased up to 42 mm.
• multiplex printing plate with 2.5 mm galvanized sheet metal plate, 4-fold guided.
• soft pressure felt (29 cm x 90 cm, 5 mm thick) is included
• packed in sturdy cardboard box
• weight: 26 kg

Price per press.
