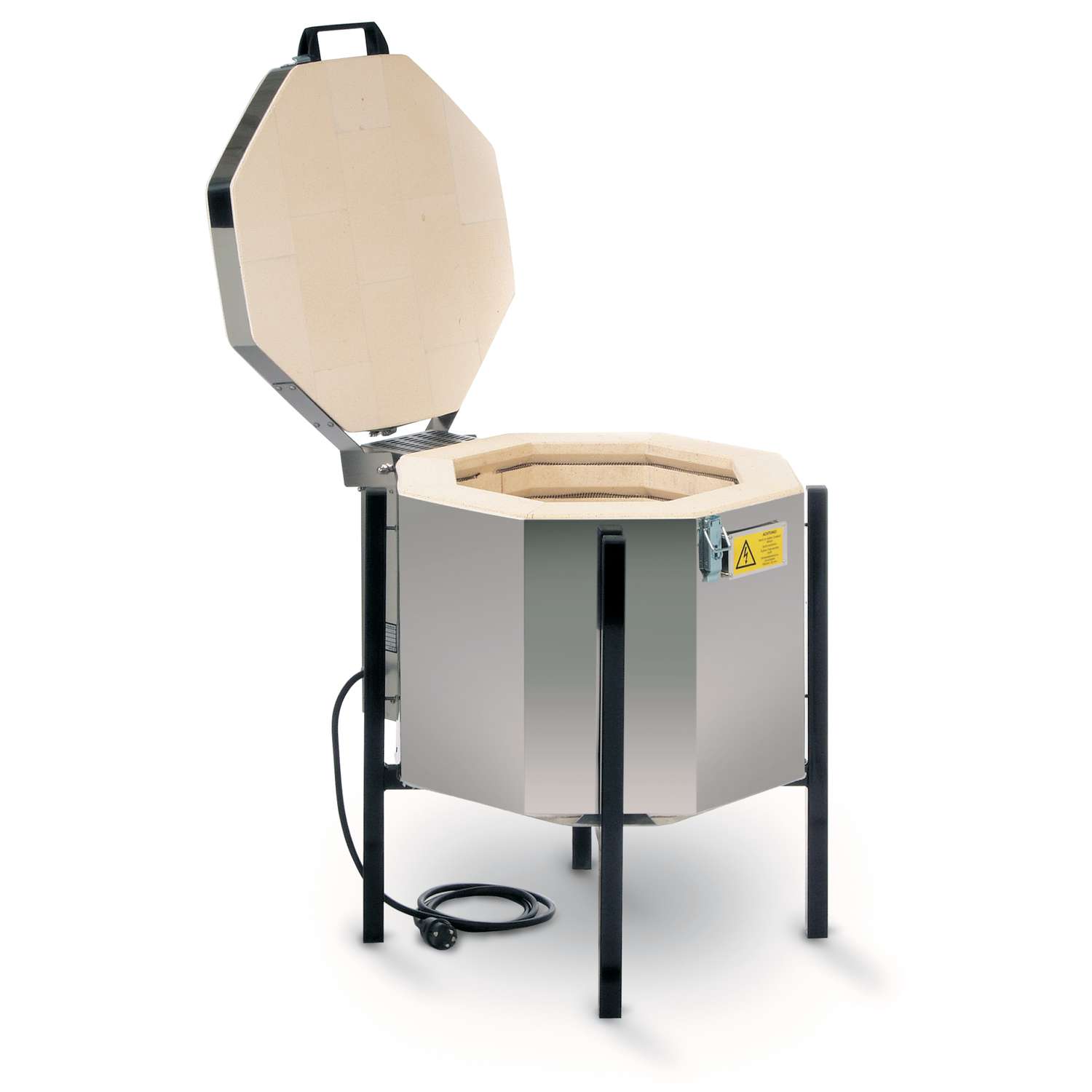

PYROTEC | PROFITHERM Kilns — with controller PY1

PYROTEC PROFITHERM Kilns have a compact design and are suitable for firing temperatures up to 1320° C, making them ideal kilns for daily use in schools and colleges as well as in professional workshops.

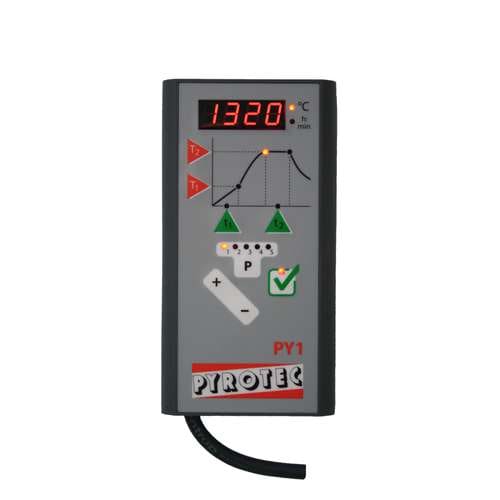

All PROFITHERM Kilns are equipped with the PY1 control system as standard.

Key features of these PYROTEC PROFITHERM Kilns:

• stainless steel housing
• multi-layer insulation, low energy consumption
• all-round heating for optimum heat distribution
• thermocouple plain type S built in protected
• powder-coated racks
• latest safety standards
• comfortable temperature control
• cost-efficient in purchase and consumption
• includes the PY1 control unit

The following PYROTEC PROFITHERM Kilns are available:

• 00120 = PY 45 H: 45 L usable volume, internal dimensions: 400 mm Ø x 340 mm, external dimensions (W/D/H): 570 mm x 730 mm x 750 mm, max. 1300° C, 45 kg, 3.6 kW, voltage (V): 230, 16 A, mains plug: Schuko
• 00136 = PY 56 H: 57 L usable capacity, internal dimensions: 460 mm Ø x 340 mm, external dimensions (W/D/H): 630 mm x 780 mm x 920 mm, max. 1200° C, 50 kg, 3.6 kW, voltage (V): 230, 16 A, mains plug: Schuko
• 00137 = PY 56 HD: 57 L usable capacity, internal dimensions: 460 mm Ø x 340 mm, external dimensions (W/D/H): 630 mm x 780 mm x 920 mm, max. 1320° C, 50 kg, 4.5 kW, voltage (V): 400 / 2N, 2 x 16 A, mains plug: CEE 16
• 00140 = PY 75 H: 77 L usable capacity, internal dimensions: 460 mm Ø x 460 mm, external dimensions (W/D/H): 630 mm x 780 mm x 840 mm, max. 1200° C, 65 kg, 3.6 kW, voltage (V): 230, 16 A, mains plug: Schuko
• 00141 = PY 75 HD: 77 L usable capacity, internal dimensions: 460 mm Ø x 460 mm, external dimensions (W/D/H): 630 mm x 780 mm x 840 mm, max. 1320° C, 65 kg, 5.7 kW, voltage (V): 400 / 3 N, 3 x 16 A, mains plug: CEE 16
• 00142 = PY 95 HD: 96 L usable capacity, internal dimensions: 460 mm Ø x 570 mm, external dimensions (W/D/H): 630 mm x 780 mm x 950 mm, max. 1320° C, 75 kg, 7.2 kW, voltage (V): 400 / 3 N, 3 x 16 A, mains plug: CEE 16
• 00143 = PY 110 HD: 112 L usable capacity, internal dimensions: 500 mm Ø x 570 mm, external dimensions (W/D/H): 670 mm x 820 mm x 950 mm, max. 1320° C, 85 kg, 7.2 kW, voltage (V): 400 / 3 N, 3 x 16 A, mains plug: CEE 16
• 00144 = PY 135 HD: 137 L usable capacity, internal dimensions: 550 mm Ø x 570 mm, external dimensions (W/D/H): 720 mm x 870 mm x 950 mm, max. 1320° C, 95 kg, 9.6 kW, voltage (V): 400 / 3 N, 3 x 16 A, mains plug: CEE 32.

Price per kiln.
